⚙️ Complete Casting Engineering Platform
C3P Cast-Designer Software for
Investment Casting

Cast-Designer Investment Casting Advanced Flow, Solidification & Stress Simulation

For Lost Wax Investment Casting

Introduction

Investment casting is a highly precise manufacturing process capable of producing complex components with excellent surface finish and dimensional accuracy. However, due to the high pouring temperatures, complex gating trees, thin sections, and ceramic shell interactions, achieving defect-free castings requires accurate control of metal flow, heat transfer, solidification, and thermal stresses.

Cast-Designer Investment Casting is an advanced simulation solution that combines intelligent design automation, expert knowledge-based engineering (KBE), and high-accuracy CAE analysis to optimize the complete investment casting process.

  • Gating tree design and mould filling
  • Shell radiation effects and enclosure behaviour
  • Solidification and porosity prediction
  • Thermal stress and distortion analysis
Simulate real manufacturing conditions for higher yield and quality
Geo Designer Capabilities

Why Use Cast-Designer for Investment Casting? Investment casting often involves expensive tooling, high-value materials, and long development cycles. Cast-Designer allows engineers to identify potential problems in the virtual environment before manufacturing begins.

Key Benefits

Early Design Validation

Identify filling problems, hot spots, porosity risks, and thermal issues during the design phase, reducing costly tooling modifications and production trials.

validation

Faster Design Optimization

Evaluate multiple gating tree and runner configurations quickly, allowing engineers to select the best solution with reduced development time.

speed

Higher Casting Yield

Optimize the complete gating system, feeder design, and runner layout to maximize casting yield while maintaining product quality.

yield

Improved Casting Quality

Predict defects such as shrinkage, misruns, cold shuts, air entrapment, and hot tears before production, resulting in more reliable castings.

quality

Reduced Simulation Time

Expert systems and automated design tools can reduce simulation setup time by up to 80% compared with conventional approaches.

efficiency

Knowledge-Based Engineering

Capture proven design practices and create reusable templates that improve consistency across future projects.

KBE

Intelligent Gating System Design Investment Casting

Gate System Advisor · Main Tree Design · SMART Designer · Radiation Simulation · Dewax Analysis

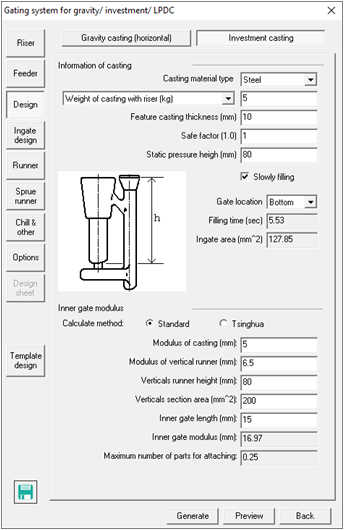

Gate System Advisor

Gate System Advisor

Integrates decades of investment casting knowledge into an intelligent advisor that helps engineers develop optimized gating systems.

Automatically calculates critical design parameters based on:

  • Casting weight and volume
  • Component thickness
  • Material properties
  • Filling requirements

Engineers can further refine inner gates, runners, and sprues using real-time design feedback.

Faster gating design Reduced experience dependence Improved metal flow balance Better quality & yield
KBE advisor

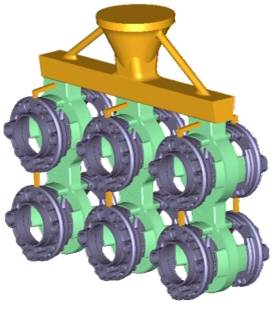

Main Tree and Runner System

Main Tree & Runner System Design

Investment casting typically involves complex tree structures carrying multiple components. Cast-Designer provides full parametric control to create optimized and repeatable tree designs.

Design Capabilities:

  • Design of main trees, runners, sprues, gates, risers, and chills
  • Access to proven standard tree templates
  • Import and export custom design libraries
  • Automatic handling of complex multi-cavity layouts
Standardized practices Faster project execution Improved repeatability Increased efficiency
tree design

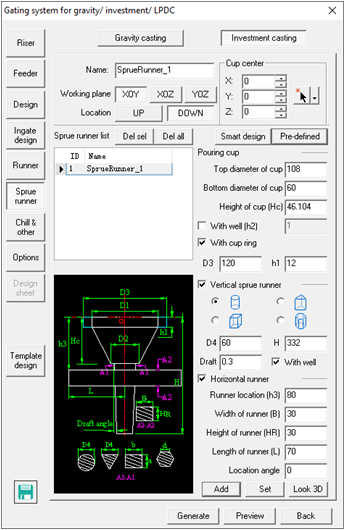

SMART Designer

SMART Designer – Automated Runner Optimization

Utilizes decades of industrial experience and advanced algorithms to automatically generate optimized runner systems.

The software evaluates:

  • Total casting weight
  • Part dimensions and geometry
  • Available layout boundaries
  • Feeding and shrinkage requirements

Intelligently designs main runner and pouring cup to compensate for solidification shrinkage.

Improved metal yield Reduced trial-and-error Balanced filling Lower manufacturing cost
AI optimization

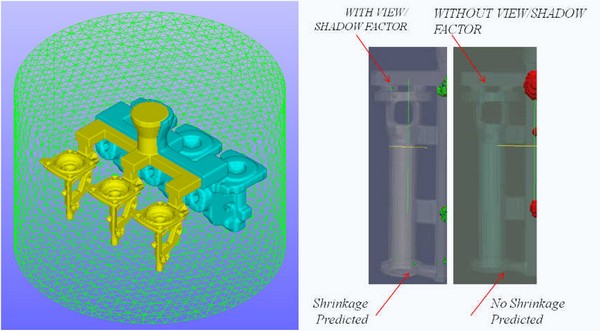

Radiation Simulation

Radiation, View Factor & Shadow Factor Simulation

Accurate Thermal Simulation for High-Temperature Investment Casting

Unlike many conventional casting simulations, Cast-Designer accurately considers heat radiation effects, critical in investment casting due to high pouring temperatures and ceramic shell processes.

Simulation includes:

  • Shell radiation effects
  • Enclosure influence from walls and factory structures
  • View factor calculations
  • Shadow factor calculations between complex geometries
Realistic solidification Improved shrinkage analysis Better shell design Enhanced consistency
thermal radiation
Dewax Analysis

Dewax Analysis

Identify Potential Wax Removal Problems Before Production

During the dewaxing process, improper geometry can trap wax or create inefficient wax drainage paths, affecting shell quality and increasing energy consumption.

Cast-Designer's Dewax Analysis automatically identifies regions that may create dewaxing difficulties.

Improved shell integrity Reduced dewaxing defects Lower energy consumption Better casting quality
dewax

Complete Investment Casting Process Simulation

Cast-Designer simulates the entire investment casting manufacturing cycle, enabling engineers to optimize every stage for quality and productivity.

Wax Injection Shell Building Dewaxing Shell Preheating Metal Pouring Mold Filling Solidification Cooling Knockout

Flow, Solidification & Stress Simulation Investment Casting

Predict molten metal behavior · Optimize feeding · Prevent thermo-mechanical defects

Cast-Designer Investment Casting provides comprehensive simulation capabilities covering the entire casting process — from molten metal flow and filling, through solidification and shrinkage analysis, to stress, distortion, and hot tear prediction.

Flow Simulation Analysis

Flow Simulation

Predict Molten Metal Behavior During Filling
Analysis Features
  • Metal flow pattern analysis
  • Filling balance evaluation
  • Air entrapment prediction
  • Temperature distribution analysis
  • Oxide film formation prediction
  • Velocity profile visualization
  • Misrun and cold shut prediction
Improved filling performance Reduced surface defects Optimized gate design Better process reliability
flow analysis
Solidification Simulation Analysis

Solidification Simulation

Optimize Feeding and Prevent Shrinkage Defects
Analysis Features
  • Hot spot identification
  • Shrinkage porosity prediction
  • Cooling curve analysis
  • Directional solidification evaluation
  • Grain structure prediction
  • Riser and feeder effectiveness analysis
  • Chill optimization
Minimized shrinkage defects Improved feeding efficiency Enhanced metallurgical quality Higher casting yield
solidification
Stress & Distortion Analysis

Stress & Distortion Simulation

Predict Thermo-Mechanical Defects

Investment castings undergo significant thermal gradients during cooling, which may result in residual stress, distortion, and cracking.

Analysis Features
  • Hot tear prediction
  • Residual stress analysis
  • Thermal stress distribution
  • Distortion and deformation prediction
  • Cracking risk assessment
Improved dimensional accuracy Reduced cracking risk Better component reliability Less post-processing
stress analysis

Investment Casting Process Optimization

Casting Part Analysis
1

Part Analysis

Analyze the casting part, check the MDI & HDI, define the position and size of inner gate.

Main Tree Selection
2

Smart Tree Selection

Select the main tree in smart design tools based on KBE, considering weight and numbers of casting parts.

Tree Generation
3

Tree Generation

Generate the main tree and part layout with optimized configuration for production.

Dewax Checking
4

Dewax Process

Perform dewax checking and make necessary adjustments to the design.

Shell Generation
5

Shell Preparation

Shell generation and CAE analysis modeling for quality assurance.

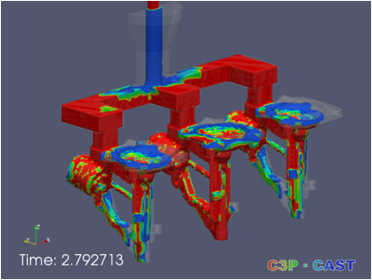

Flow Simulation
6

Flow Simulation

CAE simulation result of metal flow during the casting process.

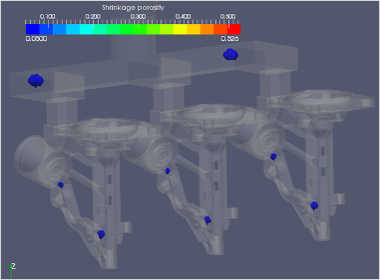

Porosity Analysis
7

Porosity Analysis

CAE simulation result showing shrinkage porosity distribution.

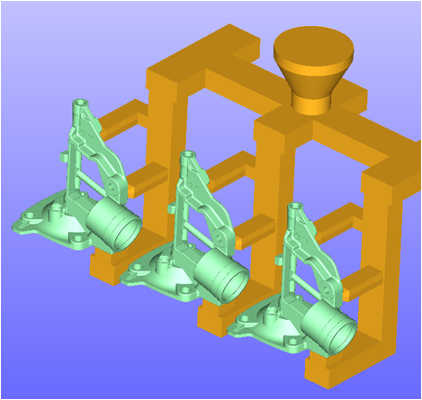

Original Design
8

Original Design

The old design with serious porosity problems requiring improvement.

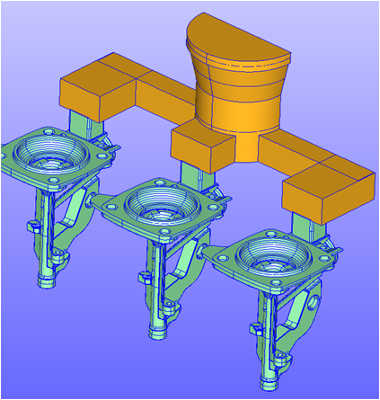

Revised Design
9

Revised Design

The optimized design saves 38% yield ratio with significantly reduced shrinkage porosity.

38% Yield Improvement

Supported Investment Casting Materials Complete Process Coverage

Alloys · Applications · Defects · Comprehensive Benefits

Aluminum Alloys

High-strength and lightweight components.

Steel Alloys

Carbon steel, tool steel, and engineering steels.

Stainless Steel Alloys

304, 316, 17-4PH and other corrosion-resistant grades.

Nickel-Based Superalloys

Inconel, Hastelloy, and other high-temperature materials.

Cobalt-Chrome Alloys

Wear-resistant and medical-grade applications.

Titanium Alloys

High-performance aerospace and biomedical components.

Copper-Based Alloys

Bronze, brass, and specialized copper alloys.

Investment Casting Applications

Aerospace turbine blades Medical implants Automotive precision components Industrial valves & pumps Defense & military parts Marine hardware Jewelry & artistic castings Orthopedic implant manufacturing

Defects Predicted by Cast-Designer

Shrinkage porosity Shrinkage cavities Misruns Cold shuts Air entrapment Oxide defects Hot tears Cracks Distortion

Why Choose Cast-Designer Investment Casting?

By combining intelligent gating design, automated runner optimization, accurate radiation modelling, complete flow and solidification simulation, and thermo-mechanical analysis, Cast-Designer provides a complete virtual engineering platform for investment casting development.

Foundries and OEMs can achieve:

Higher first-time-right success Reduced development cost Shorter product launch cycles Improved casting quality & consistency Increased metal yield Reduced scrap and rework Faster simulation setup Better utilization of engineering knowledge
